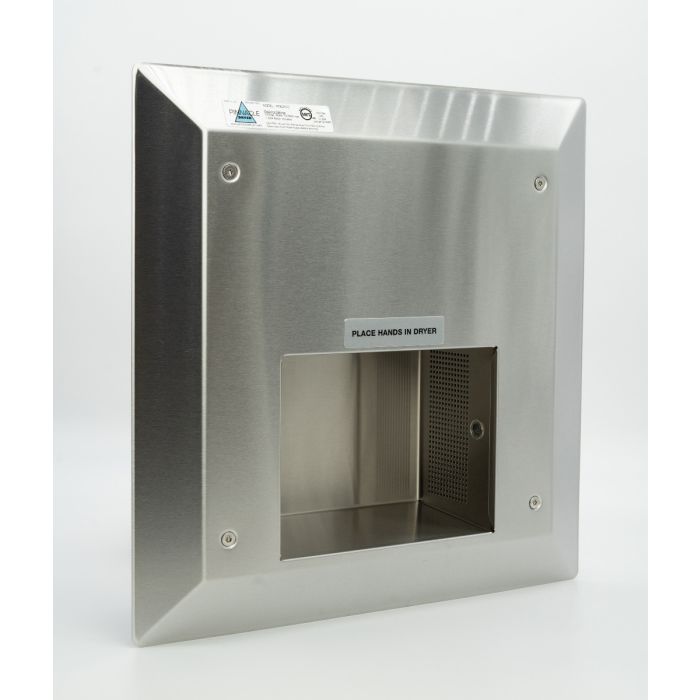

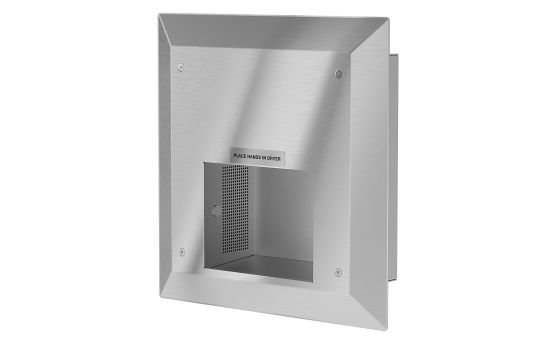

Touchless Hand Dryer - Recessed Model PDC-R10

The Vandal Resistant Recessed Electric Hand Dryer is engineered for high-traffic environments where reliability, hygiene, and resistance to abuse are critical. Its recessed design reduces exposed surfaces and tampering opportunities, while the touchless infrared sensor promotes a cleaner, more sanitary restroom experience.

Key Features

• Made in the USA: Crafted with precision and pride for long-term performance
• Touchless Operation: Infrared sensor allows hands-free drying to reduce germ transmission
• Recessed Installation: Sits flush in the wall to deter tampering and vandalism
• Eco-Friendly: Energy-efficient alternative to paper towels; reduces landfill waste
• Heavy-Duty Construction: Available in vandal-resistant 12-gauge stainless steel
• Fast Drying: Dries hands in 12–15 seconds for optimal restroom throughput
• Corrosion Resistant: Ideal for wet or humid environments
• Industry-Leading Warranty: 10-year limited warranty covers damage from vandalism

Construction & Materials

Faceplate Options

• 18 Gauge 304L Stainless – White: Powder-coated for a clean, bright finish
• 18 Gauge 304L Stainless – Black: Powder-coated for a sleek, modern appearance
• 18 Gauge 304L Stainless – Satin: Brushed finish for a refined stainless look
• 12 Gauge 304L Stainless – Satin: Maximum vandal resistance with premium durability

Finish

Satin #4 Stainless Finish: Provides a smooth, low-reflective surface that hides fingerprints and wear

Specifications

• Dimensions: 12 ¼” W x 15 ½” H x 4” D
• Weight: 15.4 lbs
• Mounting: 3/8" mounting hole placements
• Electrical Knockouts: Located on the top and bottom right, 1.5” from edge to center
• Installation Requirements: Must be grounded and mounted per NEC and local codes; GFI breaker recommended

Model Numbers

• PD-PDC-R10-18g – White: White powder-coated 18-gauge faceplate
• PD-PDC-R10-18g – Black: Black powder-coated 18-gauge faceplate
• PD-PDC-R10-18g – Stainless: Satin stainless steel 18-gauge faceplate
• PD-PDC-R10-12g – Stainless: Satin stainless steel 12-gauge faceplate (vandal resistant)

Compatibility

• Commercial Restrooms: Ideal for airports, correctional facilities, schools, stadiums, and transportation hubs
• Standard Electrical Systems: Compatible with common voltage and wiring configurations

Installation Notes

Important: Install only after the finished wall surface is completed. Secure with four mounting anchors, ensuring electrical wiring is kept clear of moving parts. Cover must be in place for proper operation.

Warranty

10-Year Limited Warranty: Covers functional damage due to vandalism. If the unit is compromised to the point of inoperability, we will repair or replace it—something no other manufacturer offers.

Why Choose Us Over Competitors?

Superior Material Strength: Unlike units such as the Bobrick B-264 or Bradley 5412, which use 18-gauge or thinner steel, our recessed hand dryers offer the superior protection of 12-gauge stainless steel. This results in up to 4x more resistance to impact and bending.

Warranty That Goes Further: Most manufacturers only cover defects in materials. We go beyond that with a true vandalism warranty that ensures your investment is protected—for a full decade.
